Replacing Fuse

  1. Park machine safely. (See Parking Safely in the SAFETY section).

  2. Lift hood.

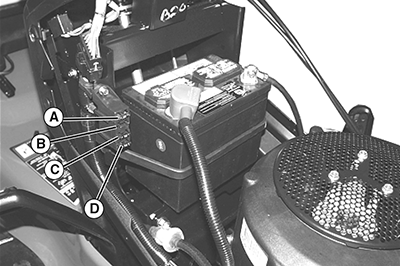

  3. MXAL47240
    MXAL47240-UN-16APR13

    Pull blown 15 amp fuse (A), 20 amp fuse (C), or 7.5 amp fuse (D), out of socket.

    • Fuse identification:

      Position

      Circuit

      Fuse Size

      A

      Main Circuit

      15 amp

      B

      12 Volt Power Port (10 amp) (Optional)

      open

      C

      Starter Circuit

      20 amp

      D

      System Circuit

      7.5 amp



  4. Check metal strip in fuse window and discard fuse(s) if strip is broken.

  5. Push new 15, 20, or 7.5 amp fuse into correct socket.

  6. Lower hood.

MX00654,000006A-19-20130817
