Install Anti-Scalp Wheels

NOTE: Anti-scalp wheels are not installed in correct hole position for operation.

MXAL47248
MXAL47248-UN-16APR13

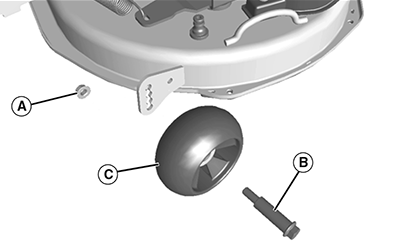

  1. Remove nut (A) and shoulder bolt (B). Move wheel (C) to proper hole position. Secure with shoulder bolt and nut. Tighten nut to specification.

    ItemMeasurementSpecification
    NutTorque34 N·m (25 lb-ft)

  2. Adjust mower level before operation.

MX00654,000006D-19-20130913
