Lubricating Pivot Points

MXAL46128-UN-09APR13

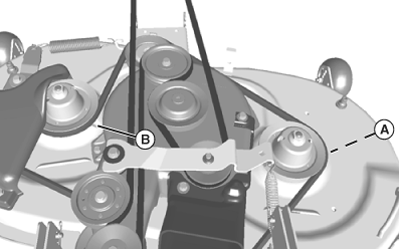

Use flexible grease gun hose guided through recessed areas (A) on mower deck, and lubricate two mower spindle grease fittings with two pumps of grease at specified interval.
