Removing Mower Deck (48C)

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Allow engine and muffler to cool completely.

  3. CAUTION: Rotating blades are dangerous. Before adjusting or servicing mower:

    • Disconnect spark plug wire(s) or battery negative (-) cable to prevent engine from starting accidently.
    • Always wear gloves when handling mower blades or working near blades.

    Raise mower deck to the transport lock position.

  4. MXAL47104
    MXAL47104-UN-16APR13

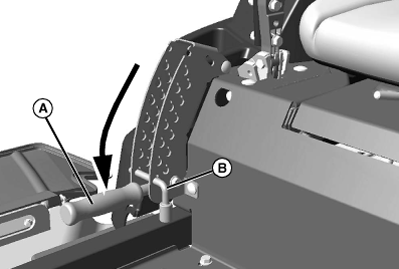

    Remove lock pin, push handle to its lowest position (A) and install pin just above lever (B) to lock deck in lowered position.


  5. Remove rubber mat and foot plate.

  6. GXT001424
    GXT001424-UN-02JUN14

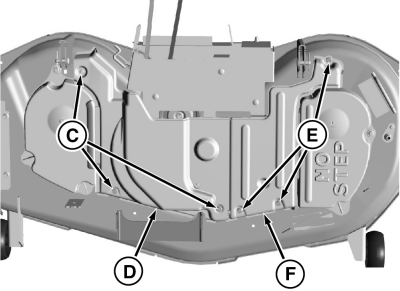

    Remove three screws (C) and the right center deck shield (D).


  7. Remove three screws (E) and the left center deck shield (F).

  8. CAUTION: Component is spring-assisted and under tension. Injury can occur if spring-assisted component is released suddenly.

    MXAL46982
    MXAL46982-UN-15APR13

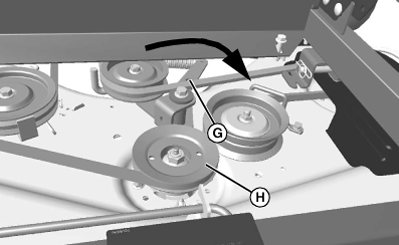

    Install 3/8-inch ratchet onto square hole (G) in tension arm and rotate clockwise to release tension on belt, while removing mower belt from center spindle sheave (H).


  9. GXT001426
    GXT001426-UN-02JUN14

    Remove hardware (I) and shield (J) under engine drive sheave.


  10. Remove belt from engine sheave.

  11. GXT001425
    GXT001425-UN-02JUN14

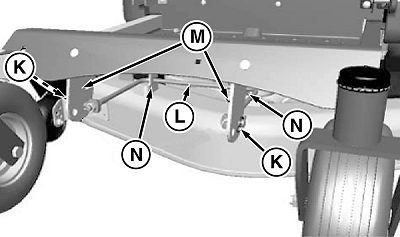

    Remove locking clips (K), and remove front draft rod (L) from draft bracket (M) and mower deck bracket (N).


  12. GXT001427
    GXT001427-UN-02JUN14

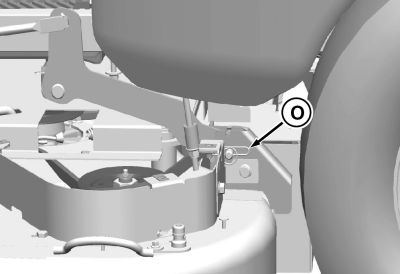

    Remove spring clip (O) and pin from each side of rear mower bracket.


  13. Raise draft arms to transport position:

    1. Pull and raise mower lift lever fully upward.

    2. Install pin just below lift lever to lock into raised position.

  14. Rotate front caster wheels to maximize clearance.

  15. Slide mower out from under the machine.

    IMPORTANT: Do not operate the machine without the mower deck: Machine may become unstable without the mower deck attached. Move machine only by hand. (See Moving Machine by Hand in OPERATING section.)
