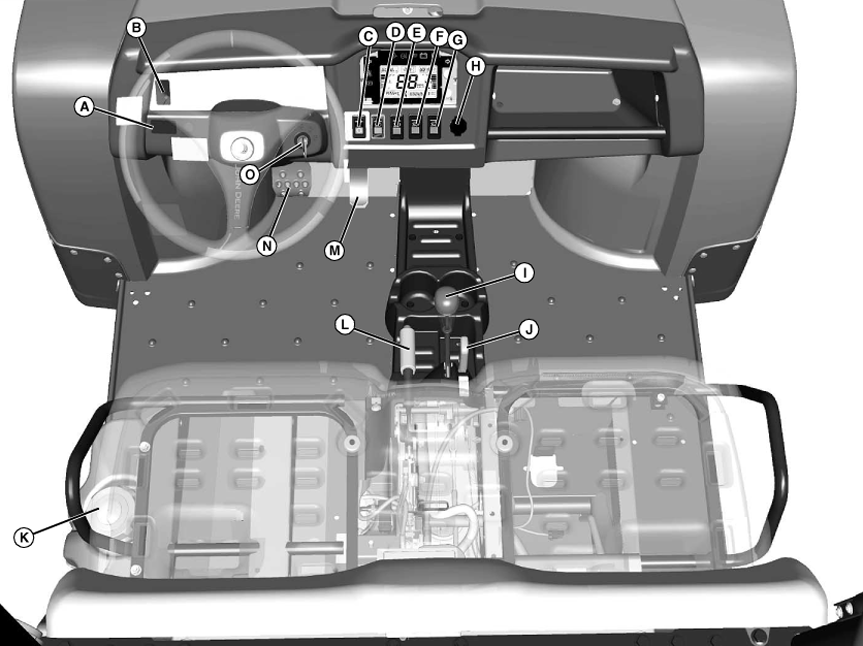

Operator Station Controls

MXAL44158-UN-10APR13

Some controls may not be installed on your machine.

Key	Description	Key	Description
A	Turn Signal Switch	I	Transaxle Shift Lever
B	Cargo Box Power Lift Switch	J	Traction Assist (Differential Lock) Lever
C	2WD / 4WD Switch	K	Fuel Tank Cap
D	Front Blade Lift/Lower Switch	L	Park Brake Lever
E	Headlight Switch	M	Accelerator Pedal
F	Horn Switch	N	Brake Pedal
G	Hazard Lights Switch	O	Ignition Key Switch
H	12V DC Accessory Outlet
