Using Seat Belt

NOTE: Shoulder harness is sensitive. An emergency lock device is built into the belt for your protection. To engage harness, pull harness slowly. Attempting to pull too fast or in a jerking motion will engage the locking mechanism and the harness will not release.

Periodically inspect seat belts for wear or damage. See Inspecting Seat Belt in SERVICE MISCELLANEOUS.

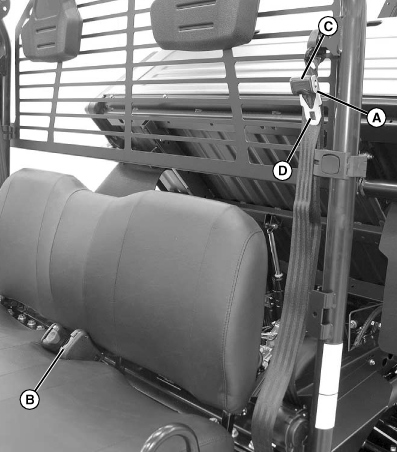

MXAL44162
MXAL44162-UN-10APR13


Fasten Belt

  1. Grasp outer seat belt connector (A) from behind seat, pull out and across body to inner connector (B), at inside of seat.

  2. To adjust outer connector for best fit, squeeze the upper (C) and lower (D) halves of outer connector together and adjust connector up or down along belt.

  3. Push outer connector firmly into inner connector until it locks.


Release Belt

1. Press red button on inner connector to release seat belt.

MP47322,00F483C-19-20130403
