Using Travel Controls

1. Stop machine.

2. Allow engine to come to a low idle speed.

3. IMPORTANT: Do not shift gears when vehicle is moving or with engine running above low idle speed. Push down brake to stop vehicle motion and engage shift lever with a firm positive action.

   Gears may grind when shifting if engine idle speed is set higher than factory specification.

   NOTE: Always shift into low range when operating on wet or uneven terrain, or when towing or pushing heavy loads.

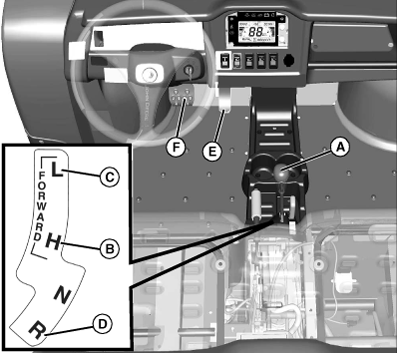

   MXAL44164-UN-10APR13

   Select a gear position:
   • Forward - Push shift lever (A) forward to either high (B) or low (C) range.
   • Reverse - Push shift lever rearward to reverse (D) gear.



---




4. Look in the direction the machine will travel.

5. CAUTION: Reduce speed before braking or turning, when hauling loads, and while operating around obstacles or on hazardous off-road conditions.

   Push down accelerator pedal (E) slowly and smoothly to begin machine travel.

6. Release accelerator pedal and apply brake pedal (F) evenly and firmly to slow down or stop.
