Adjusting Lights

•
  MXAL44192-UN-10APR13

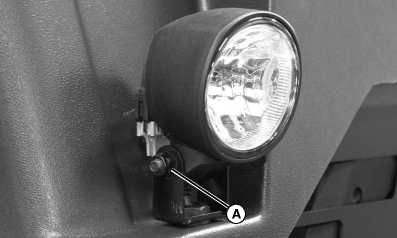

  Mid-Range Lights: Loosen locknut (A) on bolt and direct light where needed. Tighten locknut to secure in position.

---

•
  MXAL44193-UN-10APR13

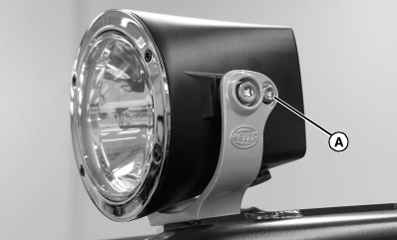

  Hella Lights: Loosen bolt (A) on light and direct light where needed. Tighten bolt to secure in position.

---

Replacing Bulbs (Mid-Range Lights)

1. Park the machine safely. (See Parking Safely in SAFETY.)

2. Open the hood.

3. CAUTION: Halogen light bulb contains gas under pressure. The bulb may shatter if the glass is scratched or dropped. Wear eye protection and handle bulb with care when replacing.

   IMPORTANT: Do not touch glass portion of new bulb with bare skin. Contact with oils or dirt will reduce bulb life. Handle bulb by the base or with a clean cloth or gloves.


   MXAL44194-UN-10APR13

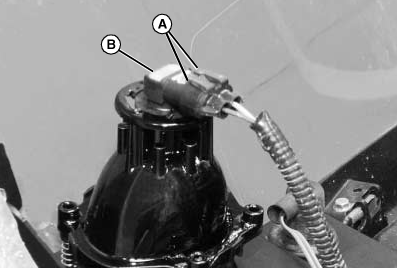

   Lift tabs (A) and remove wire harness connector from lamp socket.

---




4. Rotate lamp socket (B) 1/8 turn counterclockwise. Remove lamp and socket assembly from housing and discard.

5.
   MXAL44195-UN-10APR13

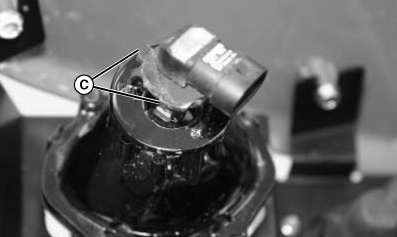

   To install new headlight, align lamp socket tabs (C) to housing slots, and rotate 1/8 turn clockwise to lock in place.

---




6. Connect wiring connector to new bulb/socket assembly.

7. Test headlight function.

Replacing Bulbs (Hella HD Lights)

1.
   MXAL44196-UN-10APR13

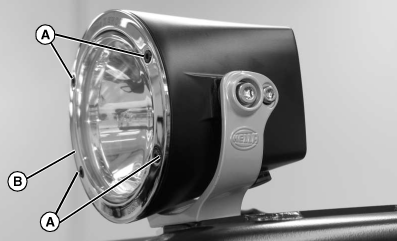

   Remove four hex head screws (A) and remove outer ring (B).

---




2.
   MXAL44197-UN-10APR13

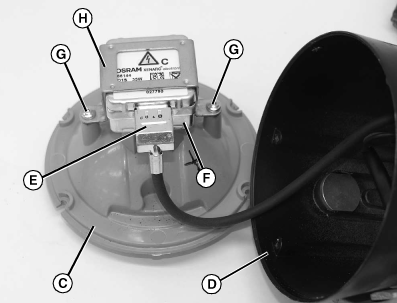

   Carefully remove assembly (C) from housing (D).

---




3. Disconnect wiring connector (E) from bulb assembly (F).

4. Remove two hex head screws (G) and retainer (H).

5. Remove bulb assembly from housing and replace.

6. Install new headlight lens assembly, and assemble components reverse order of removal.

Replacing Bulbs (Hella Halogen Lights)

MXAL44198-UN-10APR13

1. Remove four hex head screws (A) and remove outer ring (B).

2.
   MXAL44199-UN-10APR13

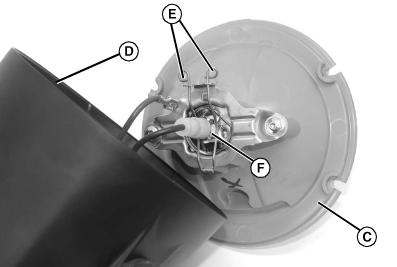

   Carefully remove assembly (C) from housing (D).

---




3. Press wire clips (E) together and remove bulb assembly (F).

4.
   MXAL44200-UN-10APR13

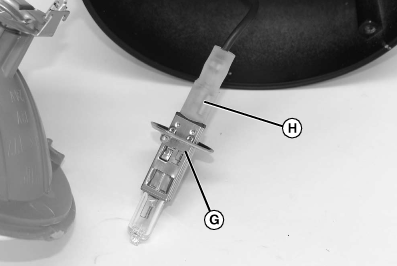

   Disconnect halogen bulb (G) from wiring harness connector (H) and replace.

---




5. Install new headlight lens assembly, and assemble components reverse order of removal.
