Lubricating Drive Line

NOTE: You may need to move machine by hand for shaft (B) to be rotated to line up grease fitting with hole in driveshaft cover.

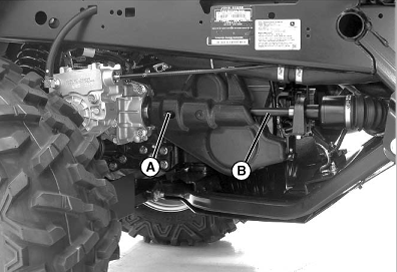

MXAL44204-UN-10APR13

View from right rear side of vehicle - on rear drive shaft.

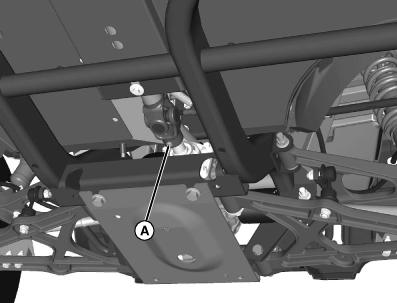

MXAL44205-UN-10APR13

View from under vehicle - on front drive shaft.

Lubricate two grease fittings (A) on drive line with one or two shots of grease.
