Checking 4WD Front Differential Oil Level

1. Park machine safely. (See Parking Safely in the SAFETY section.) Allow machine to cool down for at least one hour.

2. IMPORTANT: Dirt and debris in oil may cause damage to the 4WD differential. Clean area around opening before removing plug.


   MXAL44247-UN-10APR13

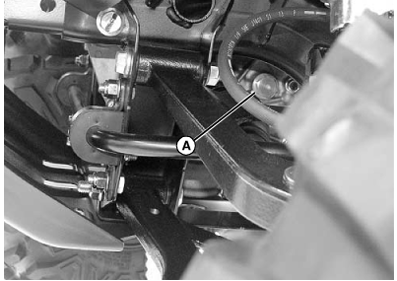

   Fill plug under left front side.

   Remove fill plug (A) located on left side of 4WD front differential.

---




3. Oil should be level with the bottom of the fill port. If oil level is low:

   1. Add oil through fill port until level is correct.

   2. Install and tighten fill plug to specification.

      Item	Measurement	Specification
      Fill Plug	Torque	11 - 40 N·m (8 - 30 lb-ft)
