Replacing Headlight Bulbs

  1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

  2. Locate headlight housing under the front fender.

  3. CAUTION: Halogen light bulb contains gas under pressure. The bulb may shatter if the glass is scratched or dropped. Wear eye protection and handle bulb with care when replacing.

    IMPORTANT: Do not touch glass portion of new bulb with bare skin. Contact with oils or dirt will reduce bulb life. Handle bulb by the base or with a clean cloth or gloves.

    MXT008459
    MXT008459-UN-02SEP13

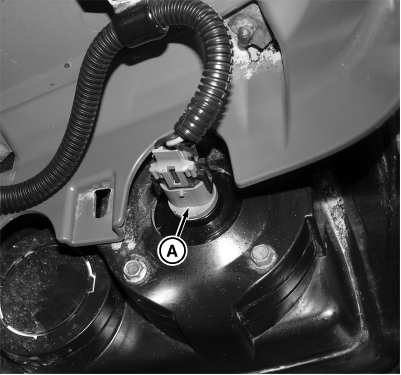

    Rotate bulb socket (A) 1/8 of a turn counterclockwise and remove socket from housing.


  4. MXT008460
    MXT008460-UN-01SEP13

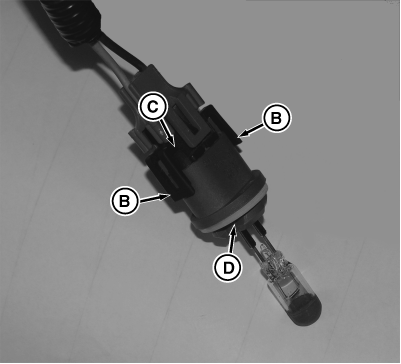

    Pull outward on tabs (B), and disconnect wire connector (C) from socket (D). Discard the bulb/socket assembly.


  5. Connect wiring connector to new bulb/socket assembly. Install the assembly into housing and rotate 1/8 turn to lock in place.

  6. Test head lamp function.

MP47322,00F4896-19-20130901
