Removing and Installing Storage Tray


Removing

  1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

  2. Open hood.

  3. Remove all contents from storage tray.

  4. MXAL44290
    MXAL44290-UN-10APR13

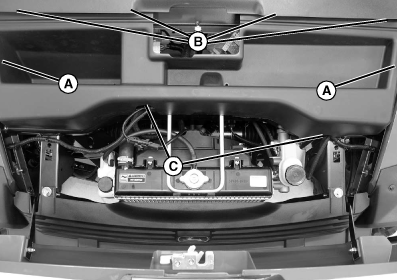

    Grasp outer edges of the storage tray (A).



  5. Flex storage tray to fit past dash panel (B) while lifting the storage tray out of machine.


Installing

  1. Position storage tray over frame.

  2. MXAL44291
    MXAL44291-UN-10APR13

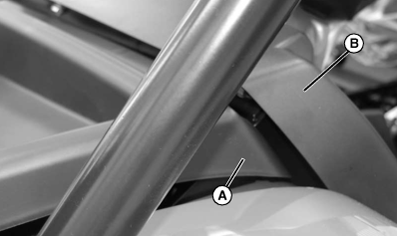

    Flex storage tray (A) to fit under dash panel (B) while lowering storage tray into position.



  3. Check alignment of cables and harnesses with routing notches (C).

  4. Secure all items to prevent damage from movement while operating the machine.

  5. Close hood.
