Checking Driven Clutch Rollers

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

2. Raise and secure cargo box.

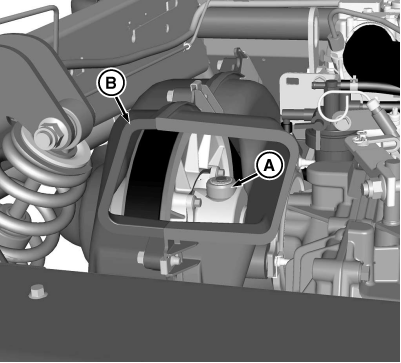

3. NOTE: Clutch rollers can be inspected through enclosure exhaust port (B) without removing clutch enclosure covers.


   MXT008468-UN-07SEP13

   Move machine slightly forward or backward so clutch roller (A) can be seen through the exhaust port (B).

---




4. Check worn clutch rollers (A):

   1. There should not be any excessive wear, play, or metal-to metal contact.

   2. If replacement is necessary, see your John Deere dealer.

5. Lower the cargo box.
