Checking Brake Fluid Level

IMPORTANT: Avoid damage! Avoid contamination of the brake fluid. Thoroughly clean area around the filler cap before removing. Do not open the brake fluid reservoir cap unless necessary.

Use extreme care when filling the reservoir. Fluid spilled on painted surfaces causes damage.

Use only brake fluid from a sealed container.

1. Park vehicle safely. (See Parking Safely in the SAFETY section.)

2. Open hood.

3. NOTE: Do not overfill reservoir. Overfilling causes leakage.

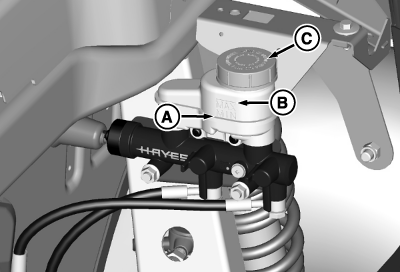

   MXT011025-UN-04SEP14

   Visually check brake fluid reservoir. Brake fluid level must be between “MIN” (A) and “MAX” (B) marks. If fluid is low:
   • Carefully clean area around reservoir cap (C).
   • Remove reservoir cap and add fluid to the “MAX” mark.



---




4. Install reservoir cap.

5. Close hood.
