Checking Air Intake, Hoses and Clamps

1. Park the machine safely. (See Parking Safely in the SAFETY section.)

2. Tip or remove seat as needed.

3. Raise and secure cargo box.

4.
   MXT010626-UN-23JUL14


   MXAL44215-UN-10APR13

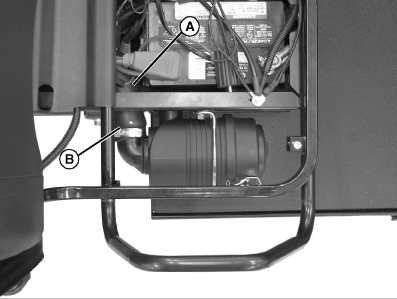

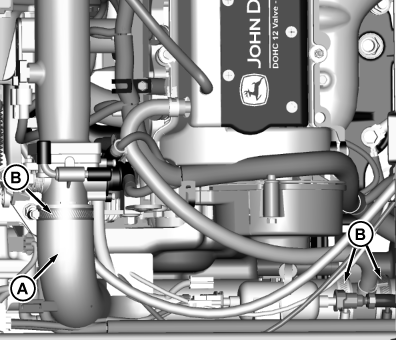

   Check intake hoses (A) for damage or cracking. Replace if necessary.

---




5. Check and tighten air intake hose clamps (B) as needed.

6. Lower the cargo box.

7. Tip seat back or install seat.
