Checking Transaxle Oil Level

IMPORTANT: Hot hydraulic oil will expand and show incorrect oil level. Check oil level:

• When oil is cold.
• With engine not running.

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

2. Raise and secure cargo box.

3. IMPORTANT: Dirt and debris in oil may cause damage to the transaxle. Clean area around opening before removing dipstick.

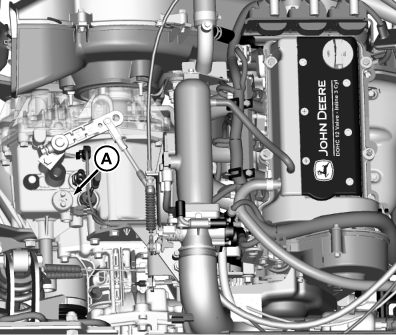

   MXT010630-UN-23JUL14

   Remove dipstick (A) located on the top of the transaxle housing. Wipe dipstick clean.

---




4. Check oil level by setting dipstick on threads in transaxle case, then removing and checking oil level.

5. Add oil as needed through the dipstick fill hole.

6. Install and tighten dipstick.

7. Lower the cargo box.
