Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See Safety Label Section):

1.
   MXT010633-UN-23JUL14


   MXAL44153-UN-10APR13

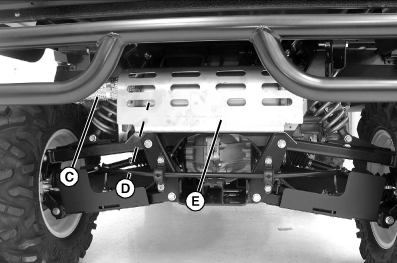

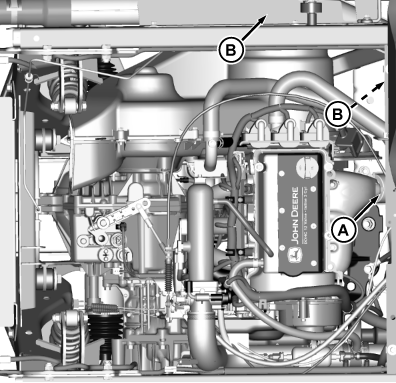

   Exhaust manifold (A) and shields (B), muffler pipes (C), muffler (D) and muffler shield (E).

---




2.
   MXAL44154-UN-10APR13

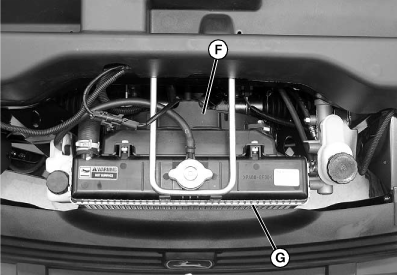

   Engine intake screens (F), and radiator cooling fins (G).

---




3.
   MXAL44155-UN-10APR13

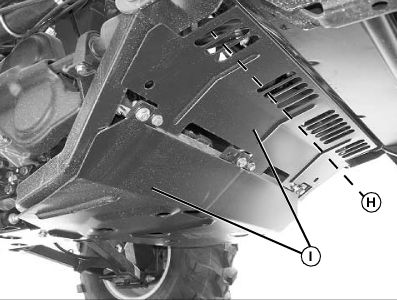

   Between engine (H) and skid plates (I) (if equipped).

---




4.
   MXAL44156-UN-10APR13

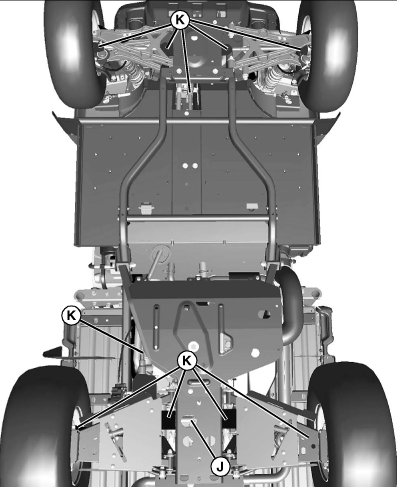

   On or near transmission (J) and driveline (K).

---




5.
   MXAL44157-UN-10APR13

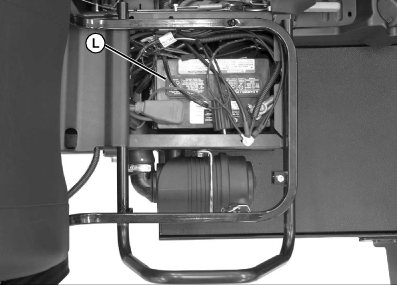

   Battery (L) and related wiring harnesses.

---
