Lubricating Drive Line

MXAL44544
MXAL44544-UN-28MAR13

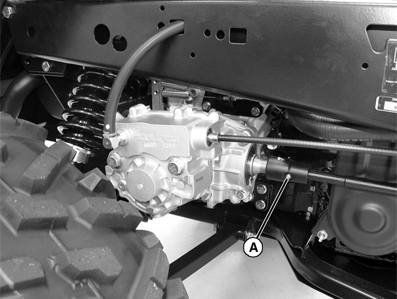

View from right rear side of vehicle - on rear drive shaft.

MXAL44545
MXAL44545-UN-28MAR13

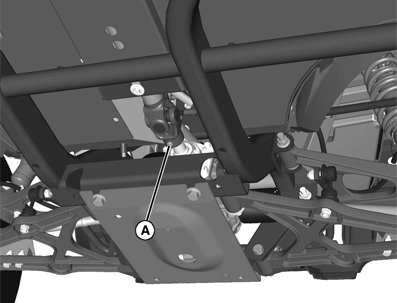

View from under vehicle - on front drive shaft.

Lubricate two grease fittings (A) on drive line with one or two shots of grease.

MX00654,0000103-19-20130906
