Checking Air Intake, Hoses and Clamps

1. Park the machine safely. (See Parking Safely in the SAFETY section.)

2. Tip passenger seat forward.

3. Raise and secure cargo box.

4.
   MXAL44556-UN-28MAR13


   MXAL44557-UN-28MAR13

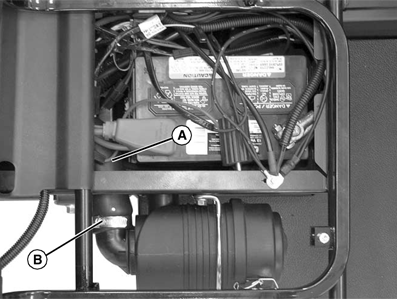

   Check intake hoses (A) for damage or cracking. Replace if necessary.

---




5. Check and tighten air intake hose clamps (B) as needed.

6. Lower the cargo box.

7. Tip seat back.
