Servicing Sediment Bowl

CAUTION: Fuel vapors are explosive and flammable:

• Do not smoke while handling fuel.

• Keep fuel away from flames or sparks.

• Shut off engine before servicing.

• Cool engine before servicing.

• Work in a well-ventilated area.

• Clean up spilled fuel immediately.

  1. Park the vehicle safely. (See Park Safely in the SAFETY section.)

  2. Allow engine to cool.

  3. Raise and secure cargo box.


Checking

  1. MXAL44558
    MXAL44558-UN-28MAR13

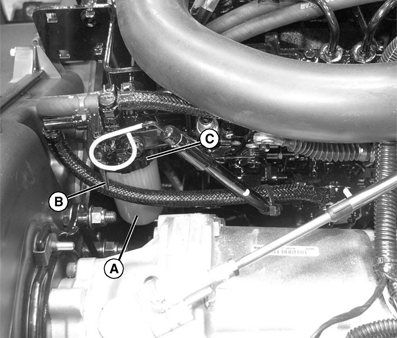

    Check for water in sediment bowl (A):

    • Red ring will float on top of the water.


  2. If necessary, clean bowl and replace filter.


Cleaning

  1. Close fuel shut-off valve (B).

  2. Turn collar (C) to remove bowl (A).

  3. Remove filter from inside bowl. Discard filter.

  4. MXAL44559
    MXAL44559-UN-28MAR13

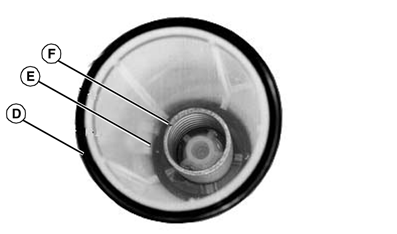

    Remove and retain O-ring (D), float ring (E), and spring (F) from bowl. Clean bowl and allow drying.


  5. Install O-ring, float ring, spring, and new filter into bowl.

  6. Install bowl to filter head and tighten collar to secure.

  7. Open fuel shut-off valve.

  8. Lower the cargo box.

  9. Bleed fuel system.
