Checking Radiator Hoses and Clamps

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

2. Raise cargo box.

3. Tip seats forward.

4. Open hood.

5. Remove storage tray.

6.

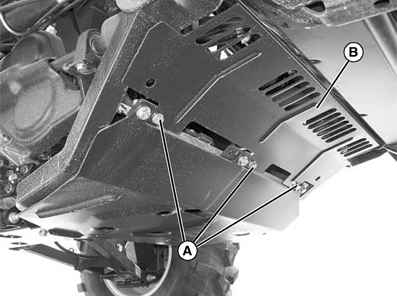

   MXAL44573-UN-28MAR13

   View from under right (passenger) side.

   Remove three bolts (A) and closeout panel (B) from machine.

---




7. NOTE: Visually inspect hoses for cracks and wear. Squeeze hoses to check for deterioration. Hoses should not be hard and brittle, nor soft or swollen.

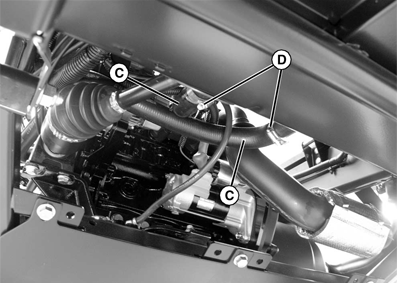

   MXAL44574-UN-28MAR13

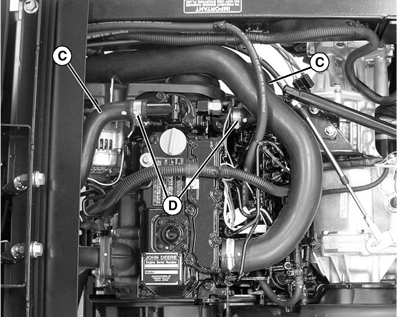

   MXAL44575-UN-28MAR13

   Check radiator hoses (C) between intermediate tubes and engine for damage or cracking. Replace if necessary.

---




8. Check hose clamps (D) and tighten or replace as needed.

9.

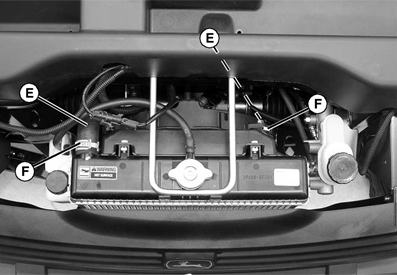

   MXAL44576-UN-28MAR13

   Check radiator hose (E) between intermediate tubes and radiator for damage or cracking. Replace if necessary.

---




10. Check hose clamps (F) and tighten or replace as needed.

11. Install storage tray.

12. Install closeout panel with three bolts.

13. Close hood.

14. Tip seats back.

15. Lower cargo box.
