Cleaning Primary Drive Clutch and Enclosure

IMPORTANT: Never lubricate any part of the primary drive clutch.

  1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

  2. Raise and secure cargo box.

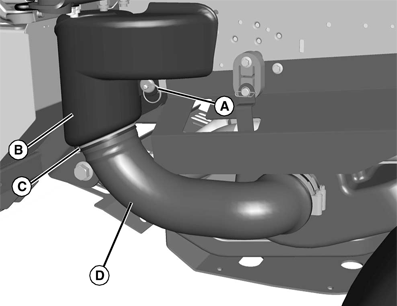

  3. MXAL44598
    MXAL44598-UN-28MAR13

    On machine left side, remove retaining ring (A), and remove top cover (B) along with rubber seal (C) from air intake hose (D).

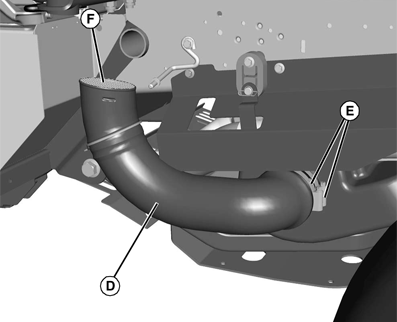

  4. MXAL44599
    MXAL44599-UN-28MAR13

    Loosen hose clamps (E) and pull air intake hose (D) off of outer clutch cover.


  5. Clean screen (F) on top of air intake hose.

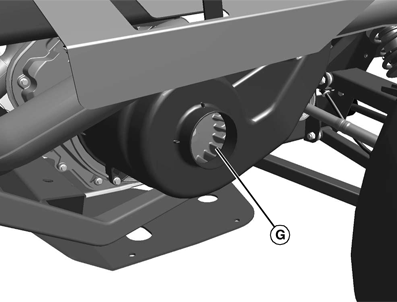

  6. MXAL44600
    MXAL44600-UN-28MAR13

    Through access hole (G), use compressed air to blow dust and debris out of clutch fan area.

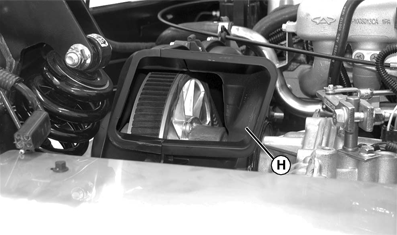

  7. MXAL44601
    MXAL44601-UN-28MAR13

    Check exhaust port (H) for debris.

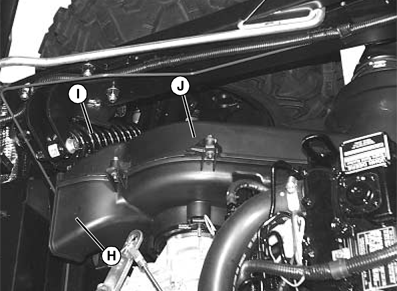

  8. MXAL44602
    MXAL44602-UN-28MAR13

    If debris is found inside exhaust port (H), remove shock (I), eleven bolts and outer clutch enclosure cover (J).

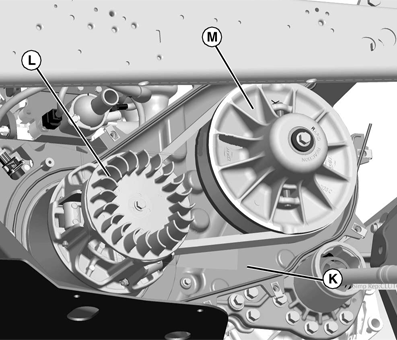

  9. MXAL44603
    MXAL44603-UN-28MAR13

    Clean inside clutch enclosure cover, clutch enclosure base (K), and around drive (L) and driven clutch (M) assemblies.


  10. Install cover.

  11. Install shock.

  12. Install air intake hose.

  13. Lower the cargo box.

MX00654,0000117-19-20130906
