Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See Safety Label Section):

1.

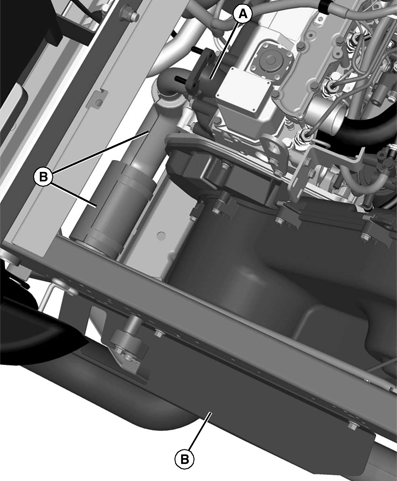

   MXAL44492-UN-28MAR13

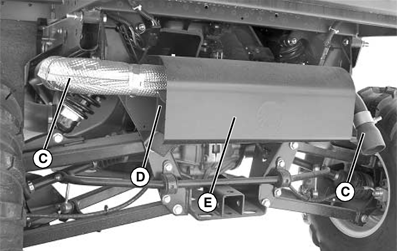

   MXAL44493-UN-28MAR13

   Exhaust manifold (A) and shields (B), muffler pipes (C), muffler (D) and muffler shield (E).

---




2.

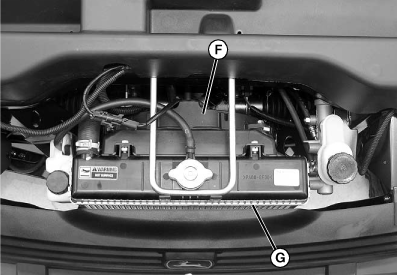

   MXAL44154-UN-10APR13

   Engine intake screens (F), and radiator cooling fins (G).

---




3.

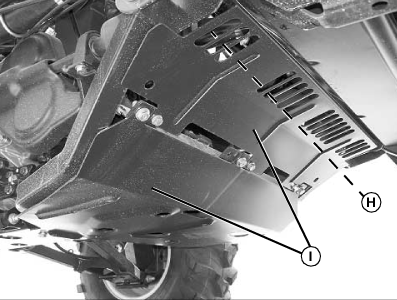

   MXAL44155-UN-10APR13

   Between engine (H) and skid plates (I) (if equipped).

---




4.

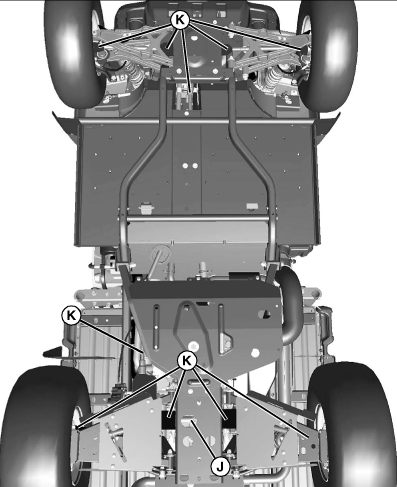

   MXAL44156-UN-10APR13

   On or near transmission (J) and driveline (K).

---




5.

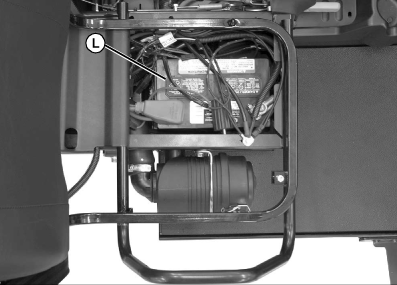

   MXAL44157-UN-10APR13

   Battery (L) and related wiring harnesses.

---
