Checking and Replacing Fuses

1. IMPORTANT: Avoid damage! The electrical system may be damaged if incorrect replacement fuses are used. Replace the bad fuse with a fuse of the same amp rating.

   Park machine safely. (See Parking Safely in the SAFETY section.)

2. Raise hood and remove storage tray.

3.

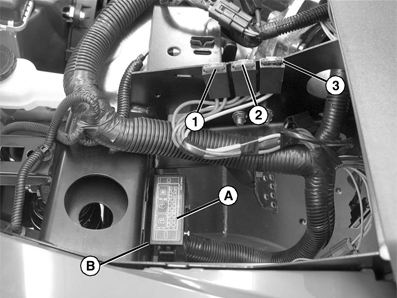

   MXAL44615-UN-28MAR13

   Fuse identification:

   Position	Circuit	Fuse Size
   1	Fan (orange wire)	30 amp
   2	Accessory	40 amp
   3	Accessory	40 amp

---




4. Pull fuse from fuses installed onto frame area, as shown.

5. Look for broken filament in fuse (See Checking Fuse Filaments in SERVICE MISCELLANEOUS).

6. Push new fuse of correct amp rating into proper position in fuse block.

7. Remove fuse relay block cover (A) to gain access to relay block (B).

8.

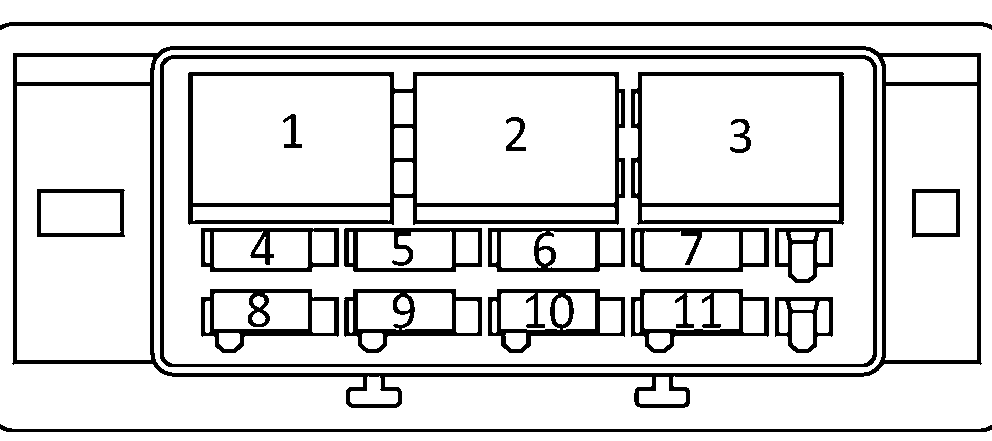

   MXAL44616-UN-28MAR13

   Fuse identification on relay block (B):

   Circuit	Fuse Size	Part #
   (1) Fuel Shut-Off Relay	N/A	N/A
   (2) Start Relay	N/A	N/A
   (3) Fan Relay	N/A	N/A
   (4) Fuel Shut-Off	25 amp	57M8623
   (5) Front Dash Power Port	10 amp	57M7689
   (6) Center Power Port	5 amp	57M7688
   (7) Instrument Cluster	5 amp	57M7688
   (8) Fuel Shut-Off Relay	15 amp	57M7690
   (9) Key Switch	20 amp	57M7691
   (10) Headlights	10 amp	57M7689
   (11) N/A	N/A	N/A

---




9. Look for broken filament in fuse (See Checking Fuse Filaments in SERVICE MISCELLANEOUS).

10. Push new fuse of correct amp rating into proper position in fuse block.

11. Check visually for broken filament in fuse.

12. Push new fuse of correct amp rating into proper position in fuse block.

13. Install storage tray and lower hood.
