Servicing Drive Belt

Inspecting Drive Belt

CAUTION: Avoid injury! Rotating parts can catch fingers, loose clothing, or long hair. Wait for engine and all moving parts to stop before leaving operator’s station to adjust or service machine.

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

2. Raise and secure cargo box.

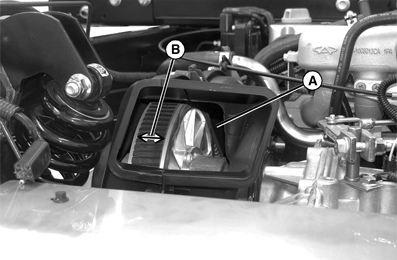

3. NOTE: Drive belt can be inspected through enclosure exhaust port (A) without removing clutch enclosure cover.


   MXAL44589-UN-28MAR13

   Measure the top surface of the belt width at (B). Replace belt if dimension is less than minimum specification.

   Item	Measurement	Specification
   Drive Belt Top Surface (min.)	Width	29 mm (1.1 in.)

---




4. Check for debris inside enclosure exhaust port and clean if needed.

Removing Drive Belt

CAUTION: Avoid injury! Rotating parts can catch fingers, loose clothing, or long hair. Wait for engine and all moving parts to stop before leaving operator’s station to adjust or service machine.

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

2. Raise and secure cargo box.

3. CAUTION: Avoid injury! The machine can fall or slip from an unsafe lifting device or supports.

   • Use a safe lifting device rated for the load to be lifted.

   • Lower machine onto jack stands or other stable supports and block wheels before servicing.

   Lift machine and secure so tires are off the ground and suspension hangs freely.

4.
   MXT012244-UN-11SEP14

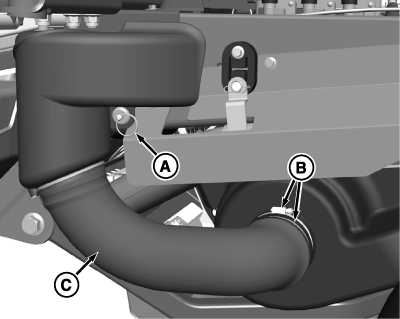

   Remove ring (A), loosen two clamps (B) and remove air intake hose (C).

---




5.
   MXT012245-UN-11SEP14

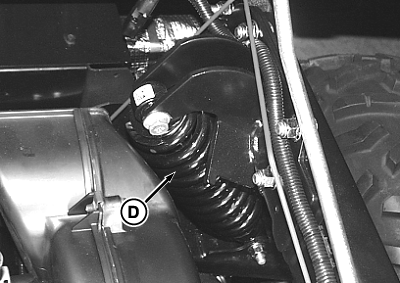

   Remove left rear shock (D).

---




6.
   MXT012246-UN-11SEP14

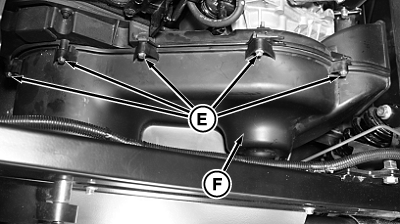

   Remove eleven bolts around (E) clutch enclosure cover (F). Remove clutch enclosure cover.

---




7.
   MXT012247-UN-11SEP14

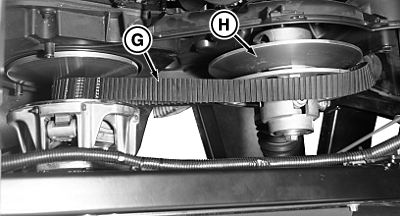

   Lift up on drive belt (G) to make slack.

---




8. Start drive belt over edge of driven clutch (H) and turn clockwise until drive belt is removed.

9.
   MXT012248-UN-11SEP14

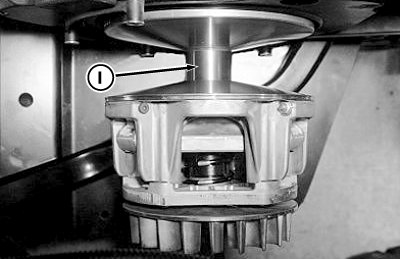

   Spin idler sleeve bearing (I). Confirm bearing rotates smoothly. If not, contact your John Deere dealer for possible bearing replacement.

---

Replacing Drive Belt

1. NOTE: Make sure arrows on drive belt face towards the front of machine.


   MXAL44595-UN-28MAR13

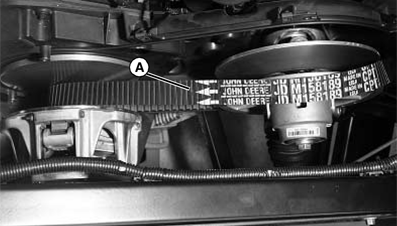

   Loop belt (A) over drive clutch and around driven clutch, starting at bottom and slide belt into driven clutch while turning.

---




2.
   MXAL44596-UN-28MAR13

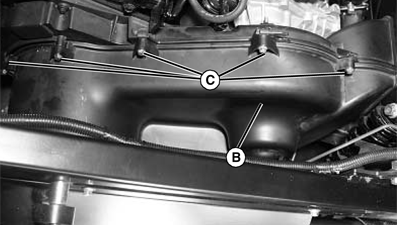

   Install clutch enclosure cover (B) and eleven bolts (C).

---




3. Install left rear shock.

4.
   MXAL44597-UN-28MAR13

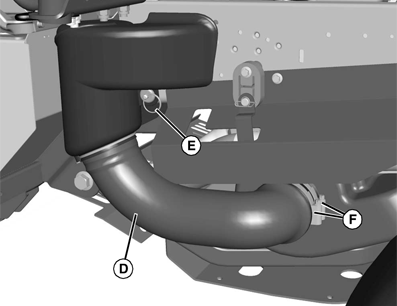

   Install air intake hose (D), retaining ring (E), tighten two clamps (F).

---
