Using Storage Areas

Under Machine Hood

CAUTION: Never store flammable, heavy, or loose breakable objects in the storage tray. Always latch hood before operating machine.

IMPORTANT: Do not store items that will not allow the hood to close properly. Properly secure loose or sharp items. These items may damage the storage tray or other items within the tray.

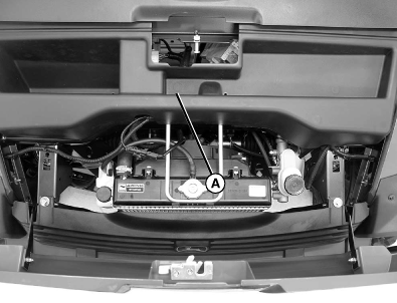

MXAL44337-UN-28MAR13

Storage tray (A) is located in front of machine under the hood.

1. Open hood to access the storage tray.

2. Secure all items to prevent damage from movement while operating the machine.

3. Close hood.

Under Bench Seat

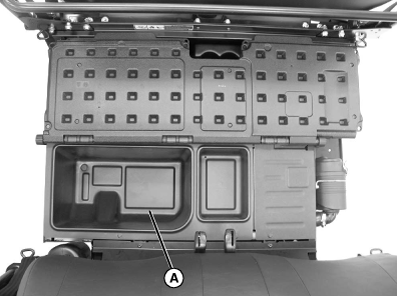

MXAL44338-UN-28MAR13

1. Tip seat and cargo rack back to access the storage tray (A).

2. Secure all items to prevent damage from movement while operating the machine.

3. Tip cargo rack and seat down.
