Removing and Installing Battery

Removing

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

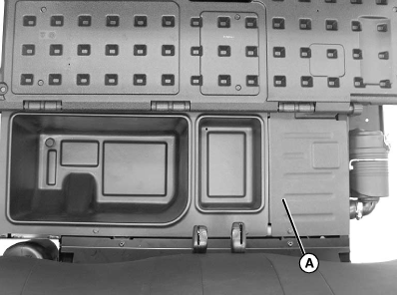

2.
   MXAL44446-UN-28MAR13

   Tip seat and cargo rack back to access the battery access cover (A).

---

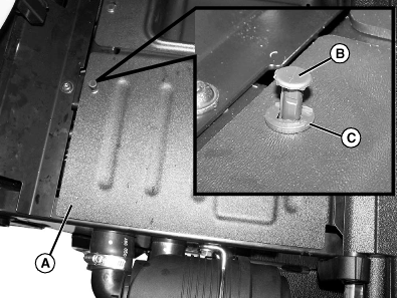

3.
   MXAL44447-UN-28MAR13

   Pull up on center retainer (B) and remove entire retainer assembly (C). Remove access cover (A).

---

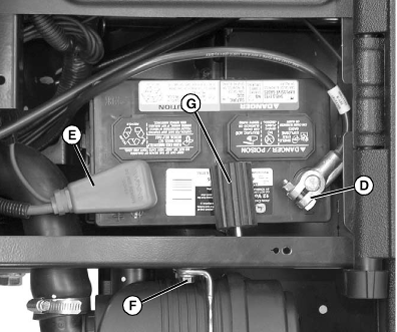

4.
   MXAL44448-UN-28MAR13

   Disconnect all black negative cables (D) from battery first.

---




5. Slide back rubber protective cover (E) and disconnect all red positive cables.

6. Loosen hardware (F) that secures battery hold-down (G) and pivot hold-down away from battery.

7. Lift battery from vehicle.

Installing

1. Install battery into vehicle with negative (-) terminal positioned toward front of vehicle and the battery seated properly in the battery tray.

2. Pivot battery hold-down firmly against battery and tighten retaining hardware to secure.

3. Connect all red positive cables to positive (+) battery terminal first. Tighten the connections.

4. Connect all black negative cables to negative (-) battery terminal. Tighten the connections.

5. Apply general purpose grease or silicone spray to battery terminals to help prevent corrosion.

6. Slide protective cover down the battery positive cable and seat it over the positive (+) terminal.

7. Install battery access cover and secure with retainer.

8. Tip cargo rack and seat down.
