Removing and Installing Seats

Removing and Installing Front Bench Seat

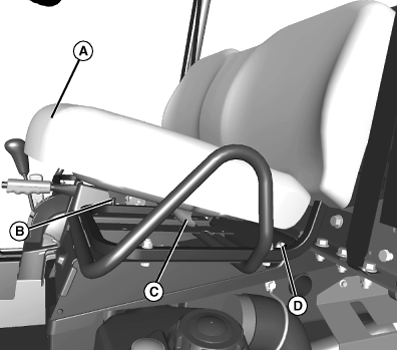

MXAL44455-UN-28MAR13

1. Pull up on front of seat (A) and remove seat from both studs (B) on seat frame.

2. Pull seat forward to remove both seat ears (C) from slots (D) on machine cowling.

3. To install seat, install ears (C) into slots (D) on both sides of machine cowling. Push down on front of seat to secure seat onto studs (B).

Removing and Installing Rear Bench Seat

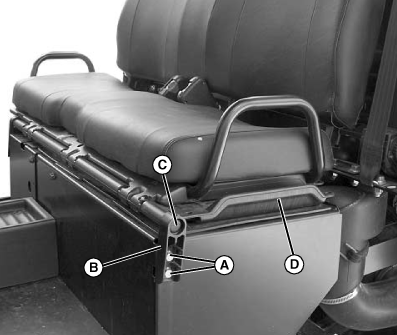

MXAL44456-UN-28MAR13

1. Remove two bolts (A) on seat pivot bracket (B). Remove seat pivot bracket from seat mounting rod (C).

2. Repeat on opposite side.

3. Remove seat (D).

4. To install seat, install seat pivot bracket (B) on each side of seat mounting rod (C) and set on seat mounting surface. Install two bolts (A) onto each seat pivot mounting bracket (B) to secure seat position.

Removing and Installing Bucket Seat

1. Tip seat forward.

2.

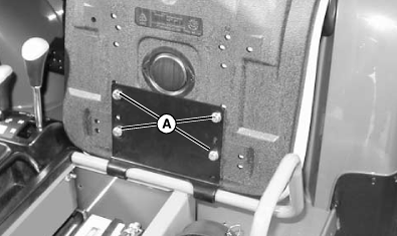

   MXAL44457-UN-28MAR13

   Hold onto seat and remove all screws (A).

---




3. Remove seat and seat bracket from support rail.

4.

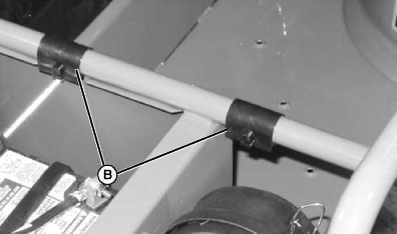

   MXAL44458-UN-28MAR13

   To install seat, position seat bushings (B) on support rail so tabs face toward rear of vehicle.

---




5.

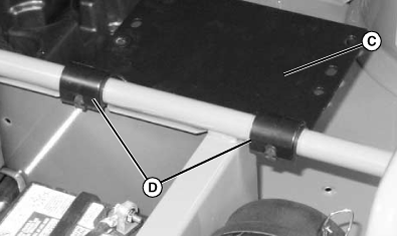

   MXAL44459-UN-28MAR13

   Position seat bracket (C) onto support rail so hinges (D) fit around rubber bushing tabs.

---




6.

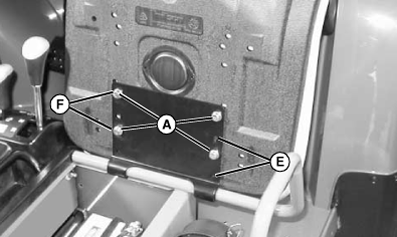

   MXAL44460-UN-28MAR13

   Rear position shown

   Rotate seat bracket upward. Position bottom of seat against bracket and align correct holes with holes in seat.

---




7. Slide seat to the forward (E) or rearward (F) position.

8. Install original screws (A) to secure seat.

9. Tighten seat bracket hardware to specification:

   Item	Measurement	Specification
   Seat Bracket Hardware	Torque	10 N·m (7.4 lb.-ft.)
