Changing HFWD System Hydraulic Oil and Filter (Transaxle and HFWD Front Axle)

1. NOTE: On HFWD equipped models, hydraulic fluid is shared between the transaxle and HFWD front axle. Hydraulic fluid should always be changed in both axles when filter is replaced.

   Park machine safely. (See Parking Safely in the SAFETY Section.)

2. CAUTION: Remove wheels safely.

   • Use a safe lifting device and support machine securely on jack stands.
   • Block front and rear of wheel not raised to prevent machine movement.
   • Wheel can be heavy or difficult to handle when removing.



   Remove front wheels and tires.

3. Place drain pans under the transaxle drain plug, the center front axle drain plug, and the drain plug at the bottom of each front axle drive unit (left and right). The system should be drained completely, make sure that containers are of adequate size.

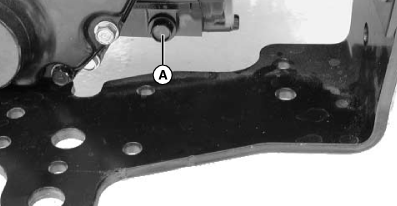

4.
   MXAL42744-UN-22MAR13

   Remove transaxle drain plug (A) and drain oil.

---

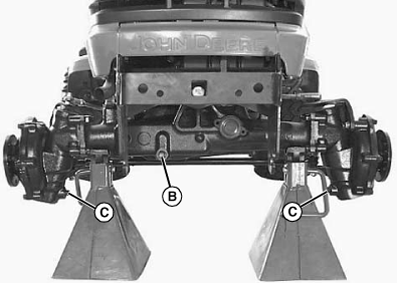

5.
   MXAL42745-UN-22MAR13

   Remove center front axle drain plug (B), and drive unit drain plugs (C) and drain oil.

---




6. Install and tighten all drain plugs when fluid has completely drained.

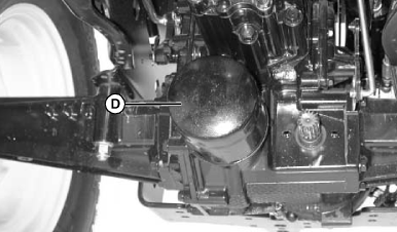

7.
   MXAL42746-UN-22MAR13

   Put drain pan under transaxle filter (D).

---




8. Turn filter counterclockwise with a filter wrench to remove it.

9. Put a film of clean transmission oil on gasket of new filter.

10. Install filter. Turn filter clockwise until gasket contacts the mounting surface. Tighten 2/3 to 1 turn more.

11. Slide seat fully forward.

12. Tilt hood forward.

13. IMPORTANT: Contamination of oil could cause transmission damage or failure. Clean area around vent plugs and filler plug before removing.

    NOTE: Follow the correct sequence when filling the HFWD system with hydraulic fluid. Fill the front axle first, fill the transaxle last.

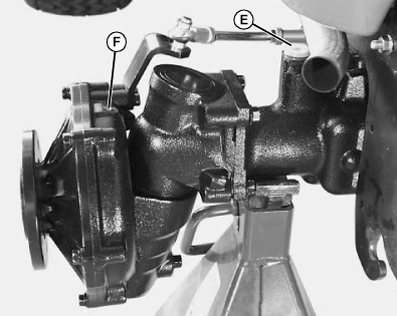

    MXAL42747-UN-22MAR13

    Remove the filler plug (E) at the right side of the axle, and the vent plugs (F) at the top of each drive unit.

---




14. Slowly fill the front axle until the hydraulic oil level reaches the vent plug holes at each side. The axle should accept specified amount of hydraulic fluid.

    Item	Measurement	Specification
    Transaxle Drive Unit Oil	Capacity	5.0 L (5.3 qt)

15. Install the vent plugs and filler plug.

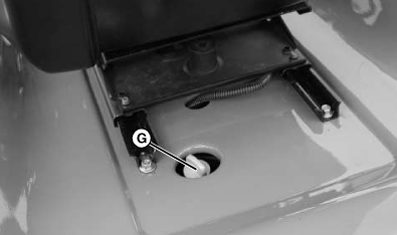

16. IMPORTANT: Contamination of oil could cause transmission damage or failure. Clean area around dipstick before removing.


    MXAL42748-UN-22MAR13

    Remove transaxle dipstick (G). Add specified amount of John Deere Low Viscosity HY-GARD (J20D) transmission oil through dipstick fill opening, or until fluid is at full level on dipstick:

    Item	Measurement	Specification
    Transaxle Oil	Capacity	6.8L (7.2 qt)

---




17. Install and tighten dipstick.

18. Start engine and check for oil leaks around filter base and drain plug.

19. Return seat to operating position, apply brake, and cycle transmission forward and reverse three times to ensure proper circulation.

20. Stop engine. Wait a minimum of three minutes for transaxle to get cold.

21. Check oil level. Add oil as needed.
