Using Mower Height Control Knob

MXT010688-UN-31JUL14

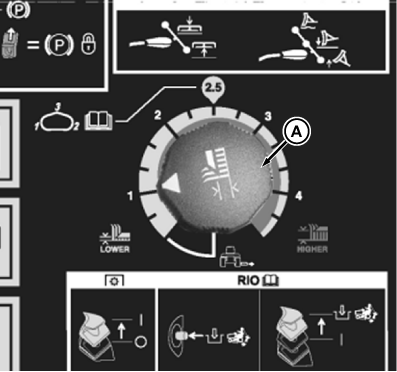

Use mower height control knob (A) to adjust mower cutting height, and lock mower deck lift arms in raised position. See your mower deck operator’s manual for instructions.

IMPORTANT: Avoid machine damage when operating without mower deck. To lock lift arms in raised position, fully raise lift arms and turn mower height control knob clockwise to highest setting.
