Changing Engine Oil and Filter

1. IMPORTANT: Operating in extreme conditions, such as heat or dust, may require more frequent service intervals.

   Run engine a few minutes to warm oil.

2. Park machine safely. (See Parking Safely in the SAFETY Section.)

3. Turn off engine.

4. Raise hood.

5.

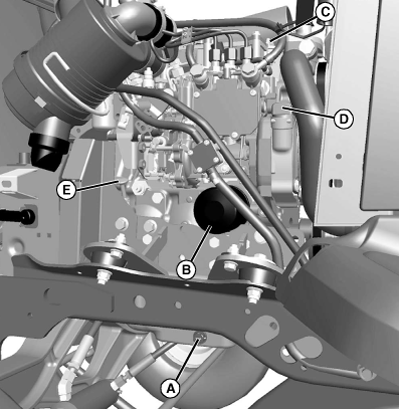

   MXAL41863-UN-18FEB13

   Put drain pan under drain plug (A).

---




6. Open drain plug.

7. Allow oil to drain completely.

8. Close drain plug.

9. Clean dirt from around oil filter (B).

10. Position drain pan under filter.

11. Turn oil filter counterclockwise with a filter wrench to remove.

12. Put a light coat of clean engine oil on gasket of new filter.

13. Install replacement oil filter by turning oil filter clockwise until gasket contacts filter base. Tighten filter an additional one-half turn.

14. Remove oil filler cap (C) or (D). Add specified amount of oil.

    Item	Measurement	Specification
    Engine Oil	Capacity	3.2 L (3.4 qt)

15. Install and tighten filler cap.

16. Start and run engine at idle to check for leaks.

17. Stop engine. Fix any leaks before operating.

18. Remove dipstick (E) and check engine oil level. Add or remove oil if necessary.
