Cleaning Air Intake Screens

CAUTION: Compressed air can cause debris to fly a long distance.

  • Clear work area of bystanders.
  • Wear eye protection when using compressed air for cleaning purposes.
  • Reduce compressed air pressure to 210 kPa (30 psi).

IMPORTANT: An obstructed air intake screen can cause engine damage due to overheating. Keep air intake screen and other external surfaces of the engine, including cooling fins, clean at all times to allow adequate air intake.

Turn engine off before removing intake screens to avoid drawing debris into the radiator.

  1. Park machine safely. (See Parking Safely in the SAFETY Section.)

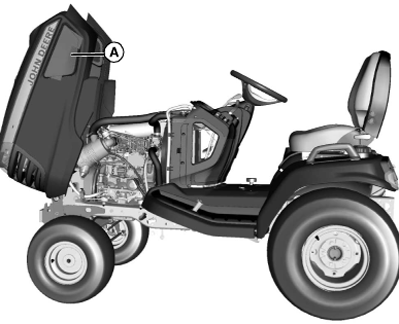

  2. MXAL41864
    MXAL41864-UN-18FEB13

    Raise hood.


  3. Clean air intake screens (A) on side of hood using a brush, cloth or water.

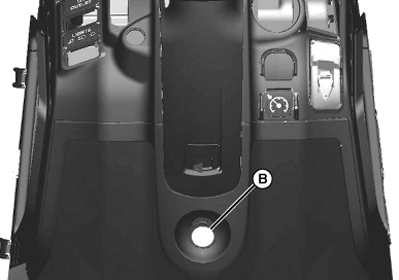

  4. MXAL41865
    MXAL41865-UN-18FEB13

    Remove pedestal screen by rotating knob (B) counterclockwise and pulling screen off. Clean off pedestal screen by removing pedestal screen and using brush, cloth or water and also remove any build up of grass around radiator compartment.


  5. Lower hood.

OUO2004,00003AC-19-20130726
