Checking Air Restriction Indicator

1. Park machine safely. (See Parking Safely in the SAFETY Section.)

2. Raise hood.

3. NOTE: Indicator will not function correctly if plastic indicator housing is damaged.


   MXAL41866-UN-18FEB13

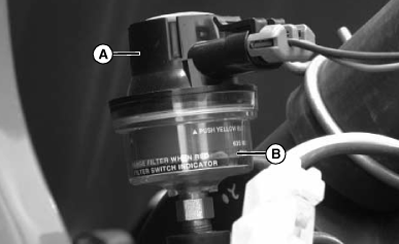

   Locate and check air restriction indicator (A).
   • If window (B) is clear, no air cleaner service is required.
   • If window (B) shows fully red, air cleaner requires immediate service.



---




4. Service air cleaner elements if needed.

5. Push yellow reset button on top of air restriction indicator.

6. Lower hood.
