Checking Air Cleaner Intake Hoses and Clamps

  1. Park the machine safely. (See Park Safely in the SAFETY section.)

  2. Allow engine to cool.

  3. Remove hood.

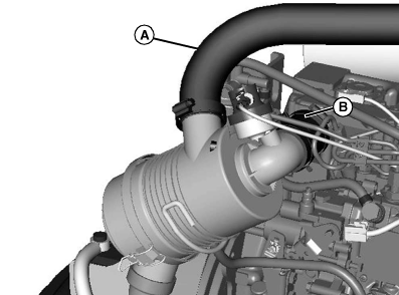

  4. MXAL41872
    MXAL41872-UN-18FEB13

    Check condition of upper (A) and lower (B) air intake hoses. Replace if needed.


  5. Check to be sure hose clamps are tight and secure.

  6. Install hood.

OUO2004,00003B0-19-20130726
