Replacing Taillight Bulb

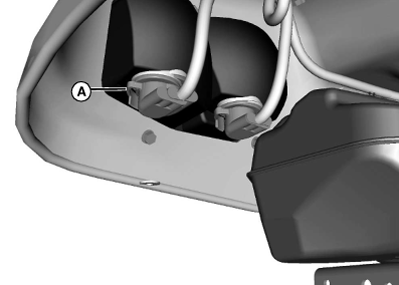

  1. MXAL41895
    MXAL41895-UN-18FEB13

    Depress tab (A) and turn bulb assembly counterclockwise 1/4 turn to release.


  2. Remove bulb assembly from housing.

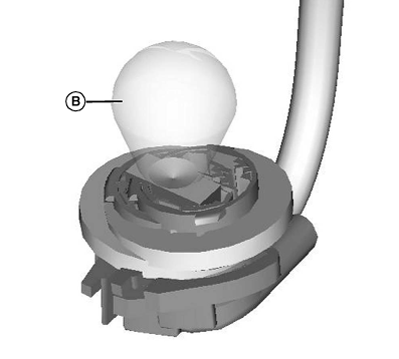

  3. MXAL41896
    MXAL41896-UN-18FEB13

    Remove bulb (B) from socket.


  4. Replace bulb.

  5. Insert bulb assembly into housing.

OUO2004,00003C4-19-20130726
