Adjusting Headlights

MXT005115-UN-09JUL12

1. Turn on headlights and check right headlight adjustment.

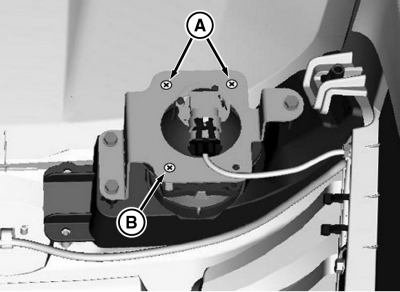

2. Open hood fully and adjust the upper inside and outside screws (A) on the right headlight assembly to move the vertical centerline of the headlight beam left or right.

3. Adjust the lower inside screw (B) on the right headlight assembly to move the horizontal centerline of the headlight beam up or down.

4. Close hood and check right headlight adjustment. Repeat vertical and horizontal adjustments until the right headlight is correctly adjusted to specification per local/regional code or regulation.

5. Repeat all steps to adjust the left headlight assembly to local/regional code or regulation.

6. Close hood.
