Install Seat (Deluxe) (Optional)

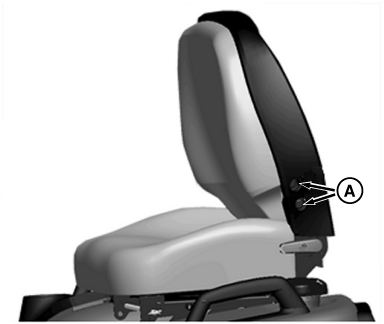

MXT004195
MXT004195-UN-12JUL12

A - Bolts (4)

  1. Remove bag of parts (four bolts and four caps).

  2. Remove backrest cushion from packaging and slide left and right frame tubes into grooves of left and right pivot bracket.

  3. Install four bolts (A) through backrest shroud holes into seat frame, two on left side and two on right side. Tighten to 23 N·m (17 lb.-ft.).

  4. Pull recline handle up and adjust backrest into operating position. Release handle.

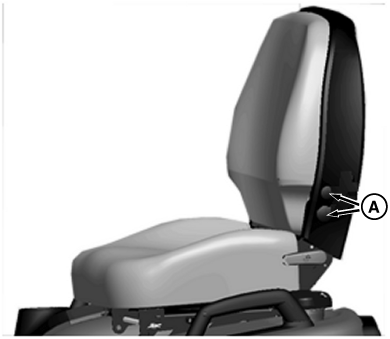

  5. MXT004196
    MXT004196-UN-12JUL12

    A - Plastic Caps

    Press four plastic caps (A) into back shroud holes, two on left side and two on right side.


OUO2004,0000A0D-19-20141203
