Lubricating Machine Grease Fittings (If Equipped) (4WD Models)

MXAL41858
MXAL41858-UN-18FEB13

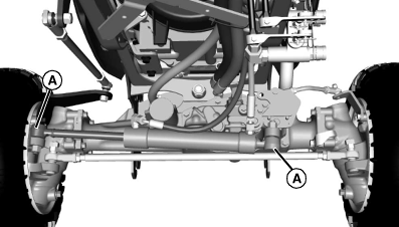

View from rear of machine.

  • Lubricate grease fittings at both steering cylinder ends (A).

MXAL41859
MXAL41859-UN-18FEB13

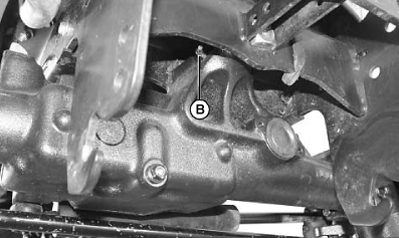

  • Lubricate grease fittings at the front axle center pivot (B).

MXAL41860
MXAL41860-UN-18FEB13

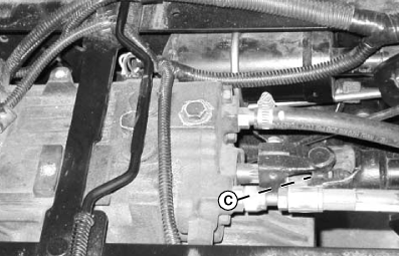

Showing view under fuel tank.

  • Lubricate grease fitting (C) on the engine drive shaft universal joint.

OUO2004,0000C44-19-20150513
