Replacing Fuses and Relays

Locate Fuses and Relays

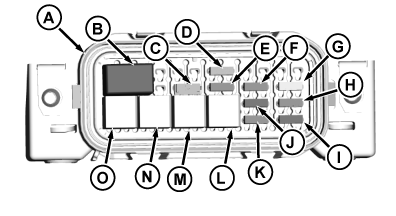

MXT014371-UN-15MAY15

A - Fuse Block

B - Starter Relay

C - Diode

D - 30 A Starter Fuse

E - 10 A Left Marker & License Plate Lights

F - 10 A Flasher Fuse

G - 20 A Cluster Fuse

H - 10 A Headlight Fuse

I - 15 A Key Switch Fuse

J - 15 A Power Port Fuse

K - 10 A Right Marker Light

L - Power Port Relay

M - Headlight Relay

N - Fuel Solenoid Relay

O - Glow Plug Relay

Remove and Check Fuses

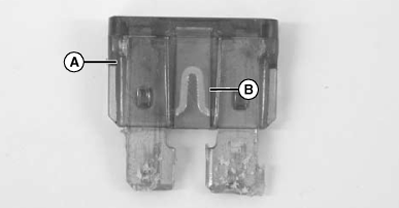

1. Pull fuse (A) from socket.

2.
   MXAL41899-UN-18FEB13

   Check metal clip (B) in fuse window. Discard fuse if clip is broken.

---




3. Install fuse.
