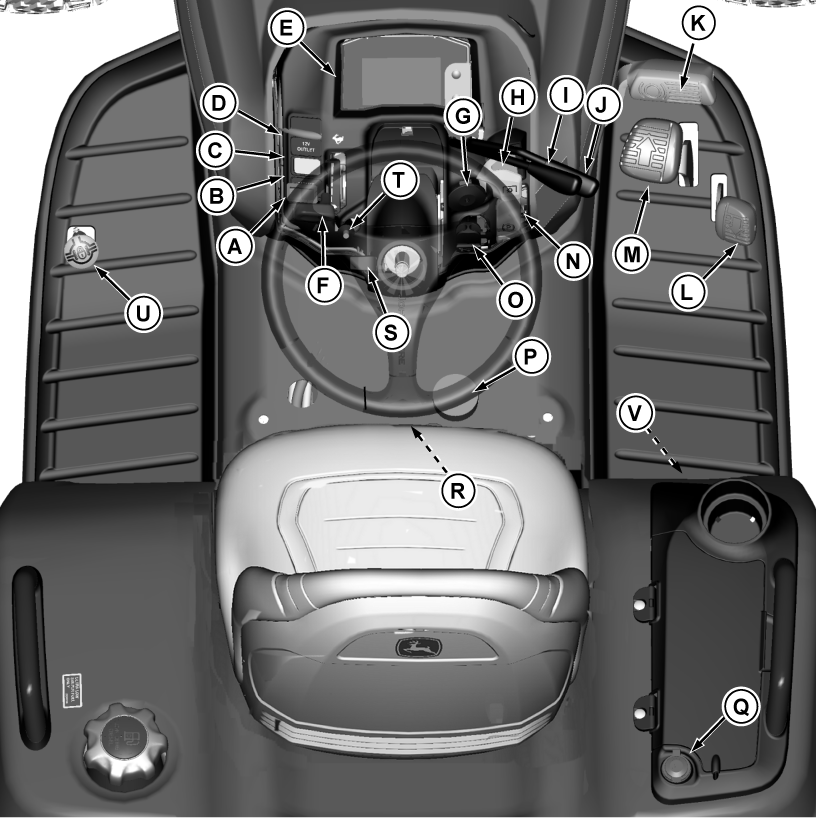

Operator Station Controls

MXT015271-UN-07AUG15

A - Light Switch

B - Horn Switch

C - 12V Accessory Outlet Switch

D - Turn Signal (Homologation Only)

E - Instrument Cluster

F - Throttle Lever

G - Key Switch

H - PTO Switch

I - Hydraulic Control Lever, Upper

J - Hydraulic Control Lever, Lower

K - Brake Pedal

L - Reverse Control Pedal

M - Forward Control Pedal

N - Park Brake Lock

O - Cruise Control Switch

P - Mower Height Control Knob

Q - 12V Accessory Outlet

R - Seat Slide Lever

S - Tilt Steering Lever

T - RIO Switch

U - Traction Assist Pedal

V - Hazard Switch (Homologation Only)
