Removing and Installing Hood


Removing

  1. Raise hood.

  2. IMPORTANT: Disconnect headlight harness before removing hood.

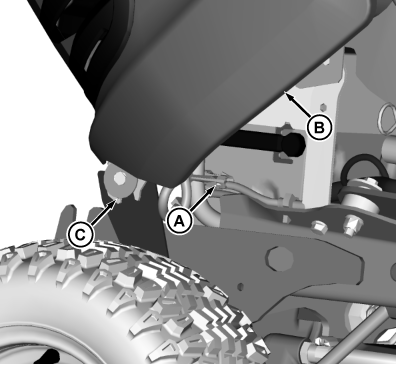

    MXT015272
    MXT015272-UN-10AUG15

    Disconnect headlight harness (A) on left side of machine.


  3. Pull hood (B) forward and lift off bushing (C).


Installing

  1. Position hood (B) upright.

  2. Install hood onto bushing (C).

  3. Connect headlight harness (A) on left side of machine.

  4. Lower hood.
