Adjusting Air Ride Seat (If Equipped)

Adjust Seat

1.

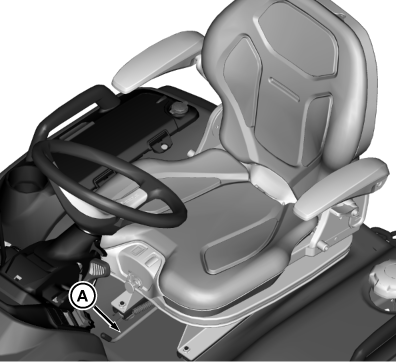

   MXT015259-UN-29JUL15

   A - Adjustment Rod

   To adjust seat front or back, push left on adjustment rod (A) though simultaneously pulling seat towards front or rear of machine.

---




2. Release adjustment rod to secure position.

Lumbar Support

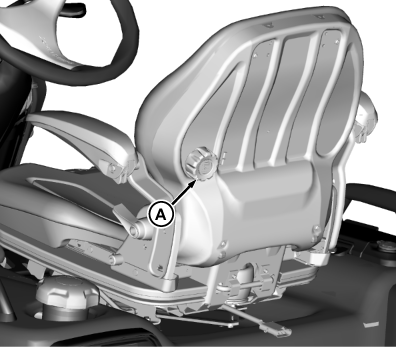

MXT015260-UN-11AUG15

A - Knob, Lumbar Support

To adjust lumbar support, turn knob (A) either direction for individual comfort level.

Armrest Adjustment

1. Fold seat down to the front for ease of access to hardware.

2.

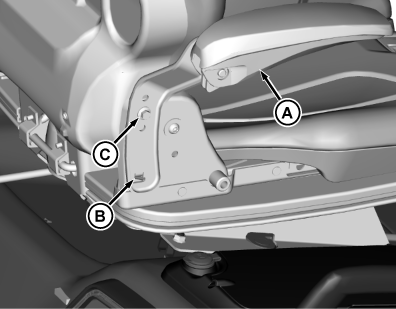

   MXT015249-UN-28JUL15

   A - Armrest

   B - Tab

   C - Bolt

   To adjust armrest (A) height, remove bolt (C) and nut, and turn tab (B) until it slides out of slot.

---




3.

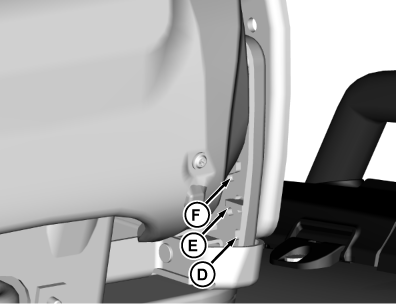

   MXT015250-UN-07AUG15

   D - Low slot

   E - Medium Slot

   F - High Slot

   Install armrest for individual comfort level by inserting tab into slot (D, E, F).

---




4. Install bolt and nut into appropriate hole.

5. Tighten bolt.

6. Adjust other side.

Back Rest Angle/Recline Adjustment

1.

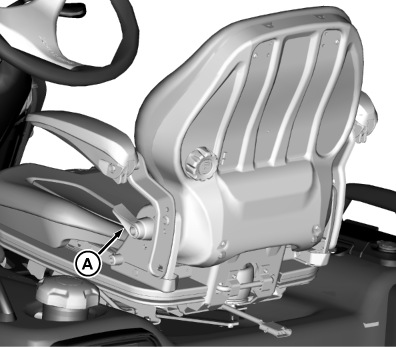

   MXT015265-UN-04AUG15

   A - Lever

   Lift lever (A) to adjust back rest angle front to back.

---




2. Release lever to set position.

Air Suspension

1. NOTE: Inflation gauge (B) shows amount of inflation. When indicator is in window, seat is inflated to appropriate level. Adjust inflation level to individual comfort.

   IMPORTANT: 12V outlet switch on dash must be in on position AND Key must be in RUN position to power the suspension.

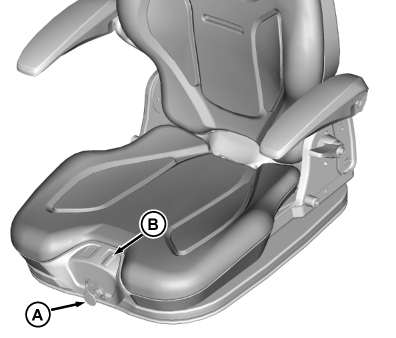

   MXT015266-UN-06AUG15

   A - Lever, Inflation

   B - Gauge, Inflation

   To inflate suspension, push in lever (A).

---




2. To deflate suspension, pull out lever.
