Using Front PTO (Optional)


Engaging Front PTO

  1. Reduce travel speed or stop machine.

  2. After engine has warmed, move throttle lever up to maximum engine speed.

  3. MXT014362
    MXT014362-UN-22JUL15

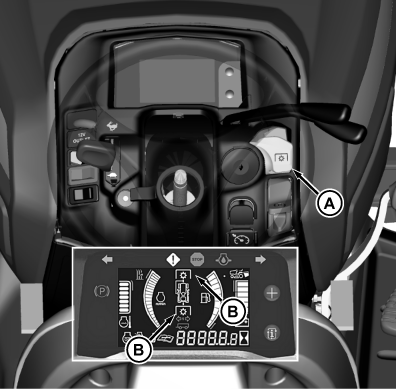

    Pull PTO switch (A) up. Instrument cluster PTO indicator (B) comes on when PTO is engaged.

    NOTE: With the optional front PTO kit installed, the front PTO drive shaft stops when the reverse travel pedal is depressed

    NOTE: If Optional rear PTO kit is installed and PTO selection lever is in either rear or rear/mid position, depressing the reverse pedal disengages the PTO.



Disengaging Front PTO

Push PTO switch down to disengage PTO. Instrument cluster PTO indicator goes out.

NOTE: Any PTO interlock violations cause PTO indicator to flash when PTO is not engaged.

OUO2004,0000CE1-19-20151008
