Using Rear PTO (Optional)

Engaging PTO

1.

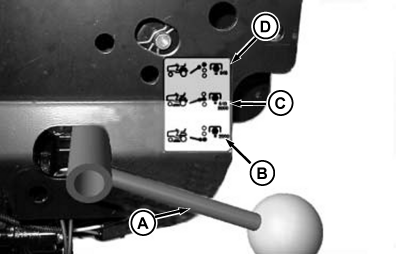

   MXT015555-UN-14AUG15

   A - Selector Handle

   B - Front/Mid PTO Position

   C - Front/Mid PTO and Rear Position

   D - Rear Only PTO Position

   With engine off and park brake on, use PTO selector handle (A) to choose between front/mid PTO position (B), front/mid PTO, and rear PTO position (C), or rear only PTO position (D).

---




2. Get back on the tractor.

3. Start Engine.

4. After engine has warmed move throttle lever to maximum engine speed.

5.

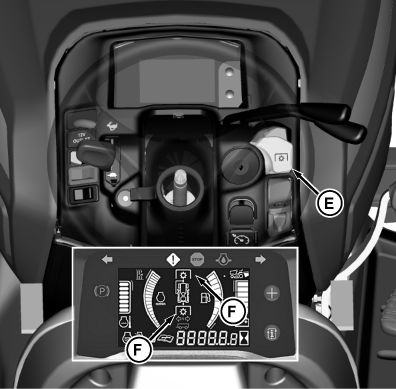

   MXT015556-UN-14AUG15

   E - PTO Switch

   F - PTO Indicator

   Pull PTO switch (E) up. Instrument cluster PTO indicator (F) comes on when PTO is engaged.

   NOTE: With optional PTO kit installed (and PTO selector handle in any position), the front PTO drive shaft stops when the reverse travel pedal is depressed.

---

Disengaging Optional Rear PTO

Push PTO switch down to disengage the PTO. Instrument cluster PTO indicator goes out.

NOTE: Any PTO interlock violations cause PTO indicator to flash, as PTO is not engaged.
