Checking and Cleaning Air Cleaner Elements

  1. Park machine safely (See Parking Safely in the SAFETY section).

  2. Lift hood.

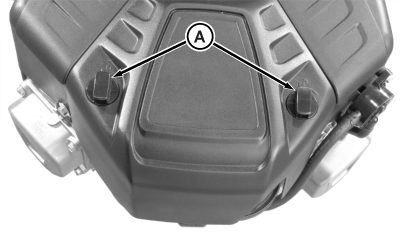

  3. MXT015028
    MXT015028-UN-02JUL15

    X330 Shown

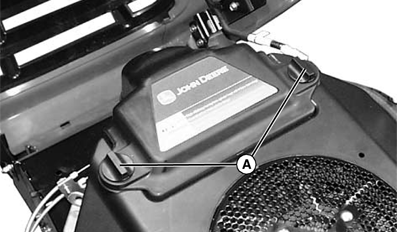

    MXAL46389
    MXAL46389-UN-05APR13

    X350 Shown

    Turn thumbscrews (A) 1/4 turn counterclockwise and lift cover to remove.


  4. IMPORTANT: Avoid allowing any dirt or debris to fall into air intake when removing the air filter. Remove any large debris or loose dirt before proceeding.

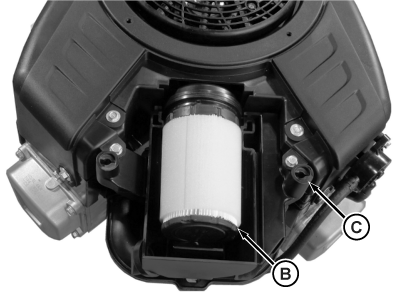

    MXT015029
    MXT015029-UN-02JUL15

    X330 Shown

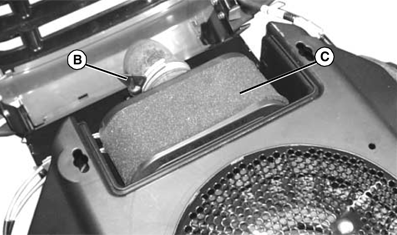

    MXAL46390
    MXAL46390-UN-05APR13

    X350 Shown

    Model X330 — Lift on filter (B) and remove from blower housing (C).

    Models X350, X354, X370, X380, X384, X390, X394 — Loosen air filter clamp by turning thumbscrew (B) counterclockwise until clamp loosens. Carefully lift the filter element (C) out of the air cleaner base.

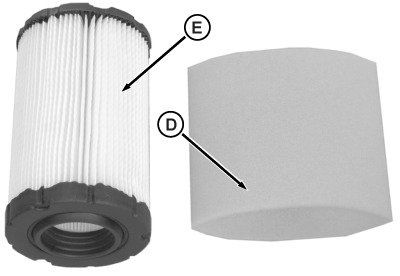

  5. MXT015027
    MXT015027-UN-02JUL15

    X330 Air Filter

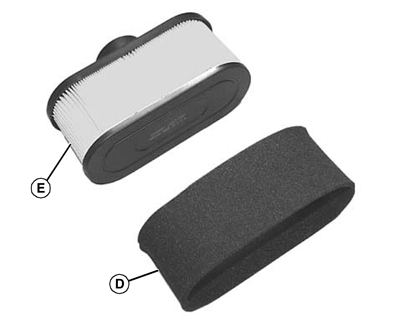

    MXAL46391
    MXAL46391-UN-05APR13

    X350, X354, X370, X380, X384, X390, X394 Air filter

    Remove the foam precleaner (D) from the paper filter element (E). If the foam precleaner is dirty:

    • Wash precleaner in a solution of warm water and liquid detergent.
    • NOTE: Do not put engine oil on precleaner. Engine oil may wick into the paper filter element and result in poor engine performance.
      Rinse precleaner thoroughly. Squeeze out excess water in a dry cloth until precleaner is completely dry.
    • Replace the precleaner if damaged or missing.


  6. IMPORTANT: Dirt and debris can enter the engine through a damaged filter element:

    • Do not wash paper element.
    • Do not attempt to clean paper element by tapping against another object.
    • Do not use pressurized air to clean element.
    • Replace element only if it is very dirty, damaged or the seal is cracked.

    Inspect paper filter element (E). Replace the filter element if damaged or dirty.

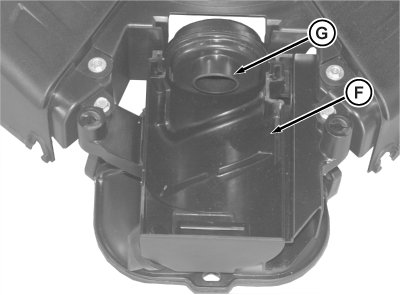

  7. MXT015034
    MXT015034-UN-02JUL15

    X330 Shown

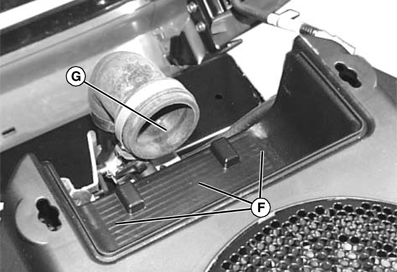

    MXAL46392
    MXAL46392-UN-05APR13

    X350 Shown

    Clean air cleaner base (F) very carefully, preventing any dirt from falling into air intake tube (G).


  8. Install foam precleaner (D) on paper filter element (E). Position air filter in air filter base and on air intake tube (G). Align air filter clamp on intake tube groove and tighten clamp by turning thumbscrew clockwise until secure.

  9. Install air cleaner cover on engine and turn thumbscrews (A) 1/4 turn clockwise to secure.

  10. Lower hood.

MX52301,0000B5F-19-20150702
