Operator Station Controls

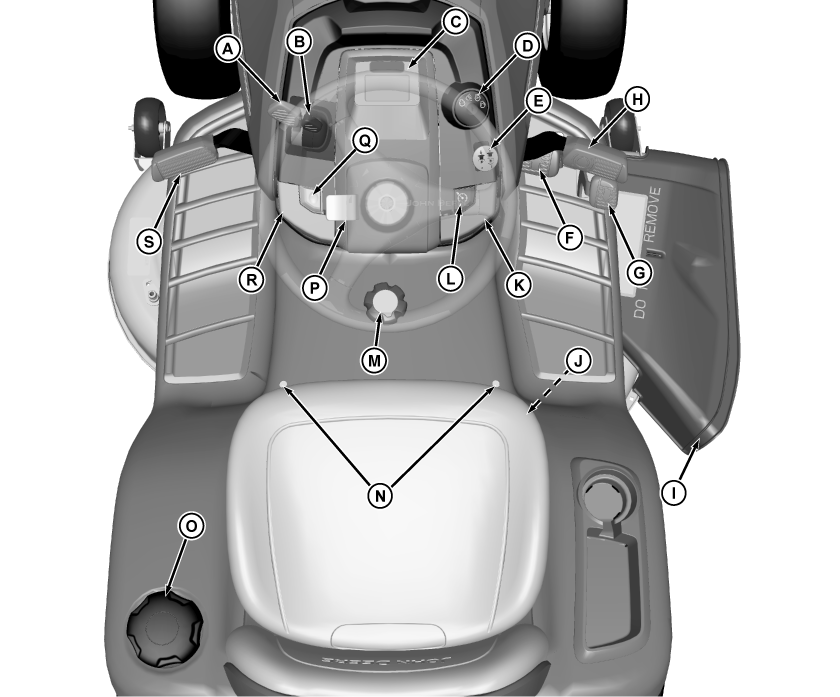

MXT014961-UN-10AUG15

A - Throttle Control

B - Choke Control

C - Instrument Cluster

D - Key Switch

E - Mower Engagement Switch

F - Forward Travel Pedal

G - Reverse Travel Pedal

H - Brake Pedal

I - Mower Deflector

J - Seat Adjustment Lever

K - Park Brake Lever

L - Cruise Control Switch

M - Mower Cutting Height Knob

N - Mower Level Adjustment Ports

O - Fuel Tank Cap

P - Tilt Steering Lever (If Equipped)

Q - RIO Switch

R - Mower Lift Control (Mechanical and Hydraulic Lift)

S - Mower Lift Pedal (Mechanical Lift Only)
