Replacing Fuse

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Lift hood.

  3. MXT014294
    MXT014294-UN-04JUN15

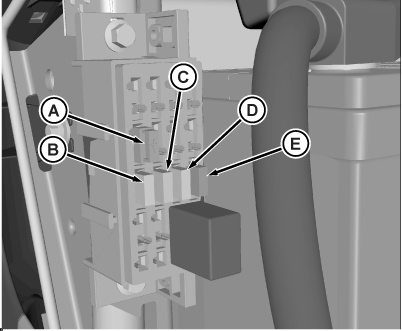

    Pull blown diode (A), 15 Amp fuse (B), 10 Amp fuse (optional) (C), 20 Amp fuse (D), or 7.5 Amp fuse (E), out of socket.

    • Fuse identification:

    Position

    Circuit

    Fuse Size

    A

    Diode



    B

    Main Circuit

    15 Amp

    C

    Key Power Circuit (Optional)

    10 Amp

    D

    Starter Circuit

    20 Amp

    E

    PTO Circuit

    7.5 Amp


  4. Check metal strip in fuse window and discard fuse(s) if strip is broken.

  5. IMPORTANT: Avoid damage! Install diode with arrow pointing up.

    Push new diode, 20, 15, 10, or 7.5 Amp fuse into correct socket.

  6. Lower hood.
