Lubricating Pivot Points

42 Mowers:

MXT014296-UN-01JUN15

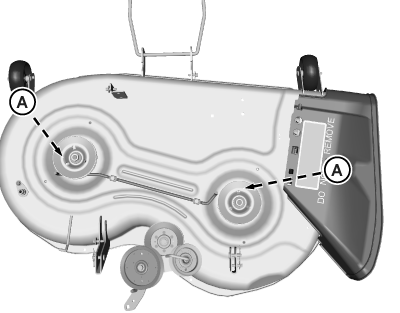

42A mower shown, shields removed for clarity.

MXT014297-UN-01JUN15

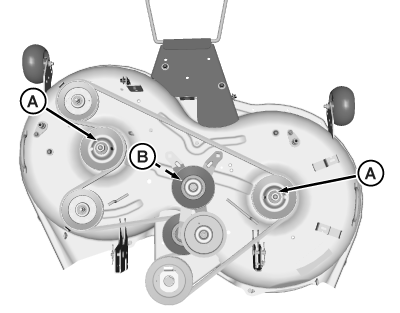

42M mower shown, shields removed for clarity

MXT014963-UN-06JUL15

• 42A and 42M Mowers: Lubricate two mower spindle grease fittings (A) with two pumps of grease at specified interval.

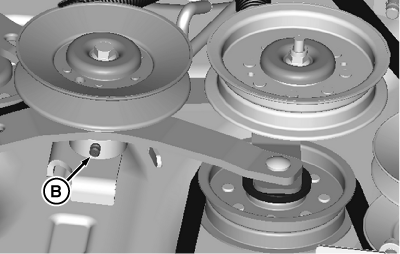

• 42M Mowers: Lubricate idler arm pivot grease fitting (B) with two pumps of grease at specified interval.

48A and 54A Mowers:

MXT014298-UN-01JUN15

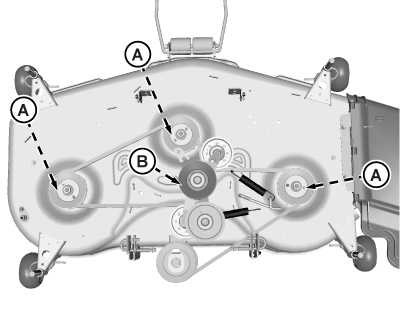

48A mower shown, shields removed for clarity.

MXT014963-UN-06JUL15

• Lubricate three mower spindle grease fittings (A) and idler arm pivot grease fitting (B) with two pumps of grease at specified intervals.
