Install Mower Discharge Chute (48A and 54A Mower)

CAUTION: Avoid Injury! Rotating blades can throw objects or debris. Do not operate mower without discharge chute or entire grass catcher in place.

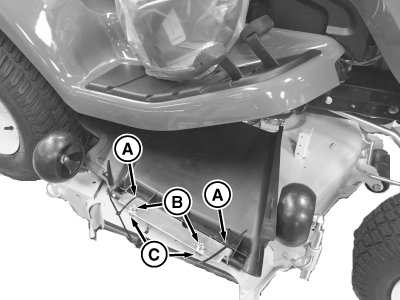

MXT015813
MXT015813-UN-06OCT15

  1. Remove and discard tie strap (A).

  2. Remove and retain two nuts (B) and two carriage bolts (C) from discharge chute assembly.

  3. Hold mower discharge chute assembly firmly on mower deck when installing.

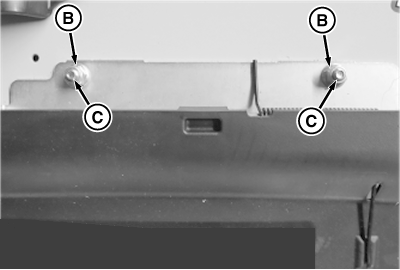

  4. MXT015814
    MXT015814-UN-06OCT15

    Align and install discharge chute assembly to mower deck with two carriage bolts (C) and lock nuts (B).


  5. Tighten nuts to specification.

    ItemMeasurementSpecification
    Lock nutTorque20 N·m (15 lb-ft)

  6. Check hinge action by opening and releasing chute. The discharge chute must spring back completely to the lowered position.
