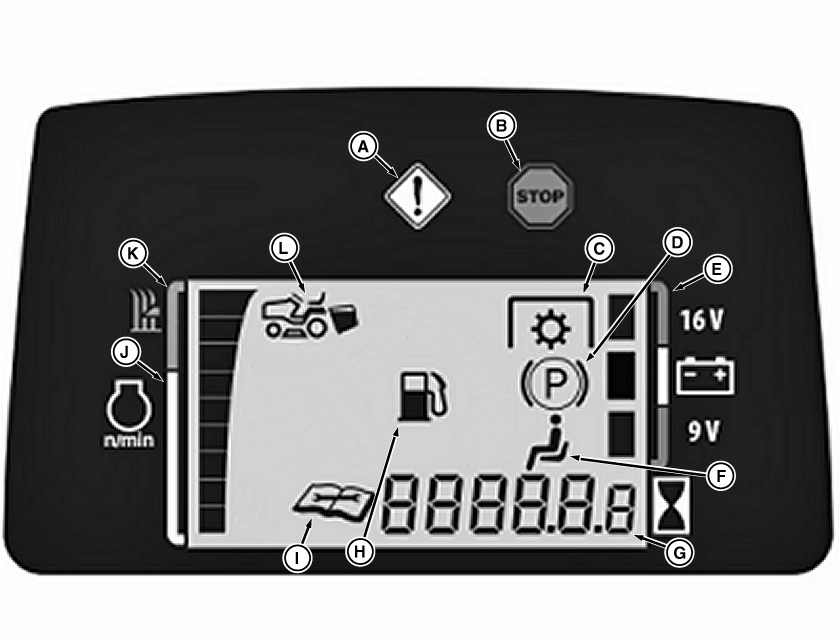

Instrument Cluster

MXT014977-UN-07AUG15

A - Caution Indicator - Refer to corresponding flashing indicator on screen when displayed. Operator action may be required.

B - STOP Indicator -Refer to corresponding flashing indicator on screen when displayed. Operator is advised to immediately remedy condition when displayed.

C - PTO Indicator - Indicates status of PTO system. Solid indicator means that PTO is active. Flashing PTO indicator means the safety interlock system prevented an operation due to improper use of PTO system.

D - Park Brake Indicator -If displayed, brake or park brake is engaged. If flashing, this indicator means the safety interlock system prevented operation because the brake is not in correct position.

E - Charging System Gauge - Indicates if charging system voltage is operating at normal, too high, or too low. If displaying in red zone, service may be required.

F - Operator Presence Indicator- Flashing indicator means that safety interlock system prevented operation because operator not on seat.

G - Hour Meter - Displays total engine running operating hours. Located to left of hour glass indicator. (See Using the Hour Meter in the OPERATING section.)

H - Fuel Pump - The fuel pump will appear and flash when low fuel is sensed.

I - Service Indicator - If flashing, contact your John Deere dealer for service. Will not flash to indicate service intervals. (See Service Intervals in the SERVICE INTERVALS section.)

J - Tachometer - Represents engine speed. Faster engine speeds fill more blocks.

K - Best Cut Zone - Best cut quality achieved when engine speed in green zone of tachometer.

L - Grass Collector Indicator - Indicates grass collector status. When flashing, grass collector is full or grass collector hopper is not in place.
